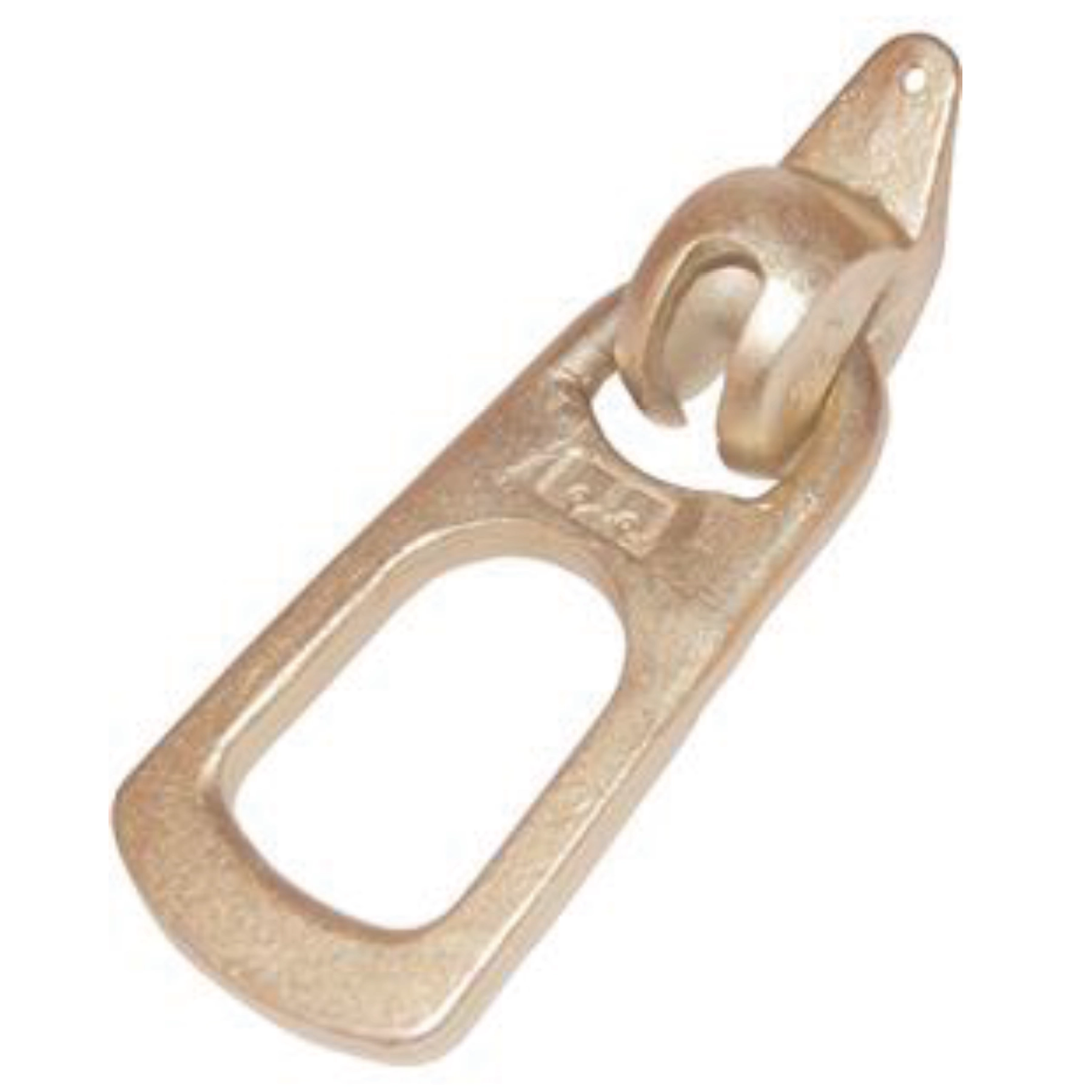

The Grade 80 Precast Concrete Lifting Clutch is a heavy-duty, reliable solution engineered to engage directly with the head of dogbone lifting anchors precast into concrete elements.
Comprising a spherical head anchor and a high-strength lifting link, this two-component assembly allows precast panels to be safely lifted, turned, tilted, and rotated under load while ensuring that only correctly matched components fit together.

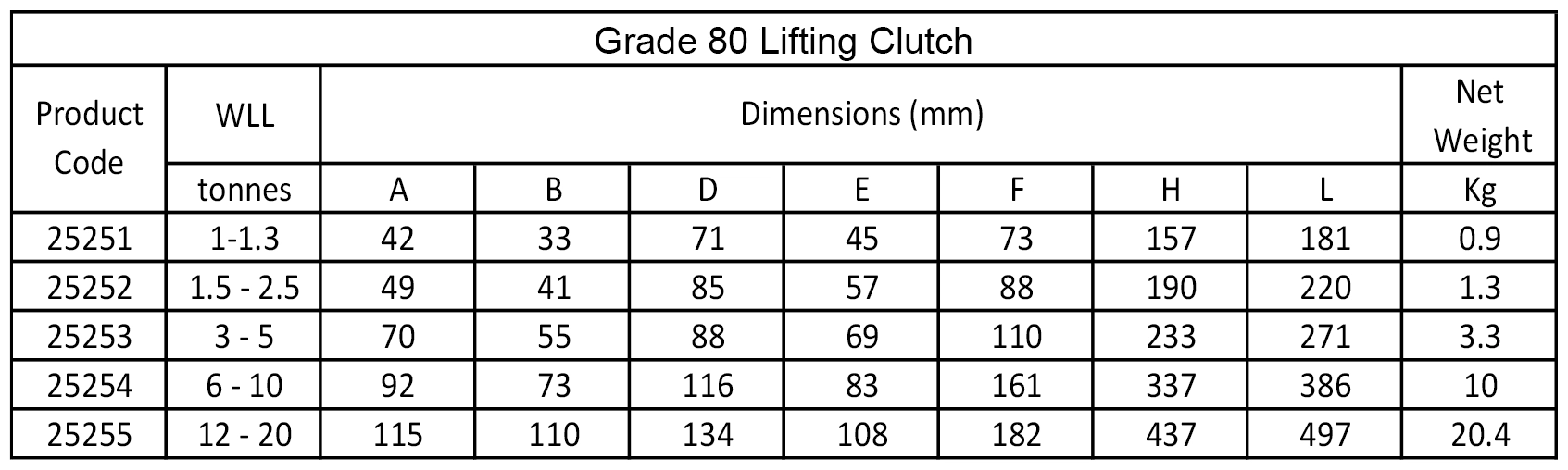

Manufactured with a robust 5:1 Factor of Safety (FOS), it supports working load limits ranging from 1 to 20 tonnes to ensure maximum security across demanding site operations.
The clutch engages simply by rotating the spherical head until the tab rests flat on the concrete surface, providing a fast, fail-safe connection for seamless precast panel handling.
