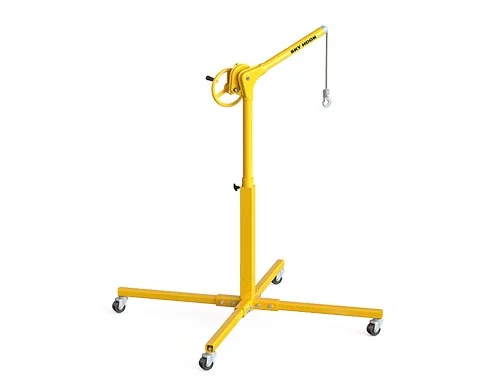

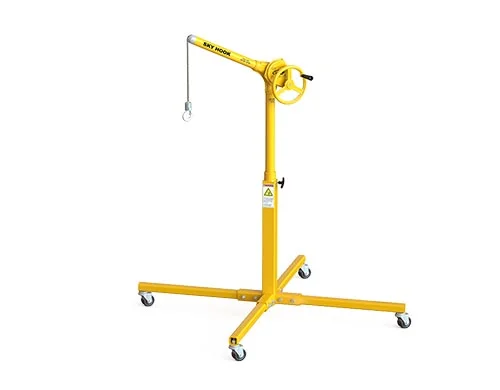

Premium 4-Leg Mobile Sky Hooks

Model #: 8757

Premium Chain Sky Hook with Mobile 4-Leg Base

• Chain Sky Hook
• #35 Steel Roller Chain
• Consistent Drive Rate
• Chain Stored Inside Vertical Tube
• Chain Travel: 75”
• Rate of Lift: 1”/ Hand wheel Revolution
• Hand Wheel Height: 56.3”

The Premium Mobile 4-Leg Base Sky Hook safely lifts and positions heavy items around benches, pallets, and machines, preventing manual lifting injuries.

Its 4-leg design fits down standard 4′ aisles and under low equipment frames. The base disassembles into pieces under 35 lbs for easy transport and storage.

Featuring the LoadLock clutch brake, it allows secure, effortless lifting of up to 500 lbs. with smooth, lever-free operation - simply crank the hand wheel to raise or lower loads.

Premium 4-Leg Mobile Sky Hooks Features & Benefits:

• Designed to straddle the corners of benches, pallets, etc.
• Prevents lifting injuries
• Uses one hand operation that does the work of four people
• Safely lifts and positions up to 500 lbs. with one person
• Designed for precision positioning
• Can be disassembled for easy transportation and storage
• Operates in tight working conditions
• Four 3" swivel casters allows for easy, precise movement
• Constructed of high strength steel
• Maintenance free
• Limited manufacturer’s warranty
• Meets applicable O.S.H.A. & ASME requirements
• Made in the U.S.A. since 1969
• CE marking available upon request

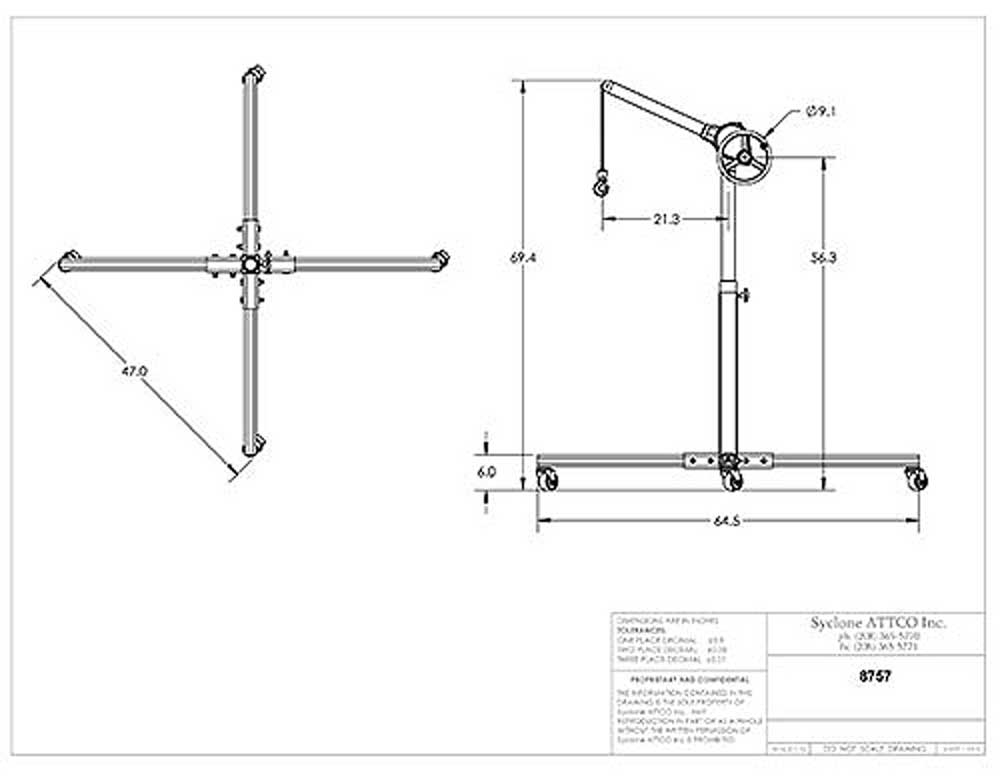

Premium 4-Leg Mobile Sky Hooks Specifications:

• Load limit 500 lbs. / 227 kg.
• Brake style: LoadLock clutch brake
• Overall height (including base): 69.4”
• Overall reach (centre of hook to centre of vertical tube): 21.3”
• Sky Hook rotation in base: 360°
• Sky Hook weight: 26 lbs.
• Base weight: 93 lbs.
• 3” x 2” glass filled nylon swivel casters with top lock brakes
• Simple crank up to raise the load/crank down to lower the load operation
• Brake locks automatically
• Custom modifications available
