Model #: 8727

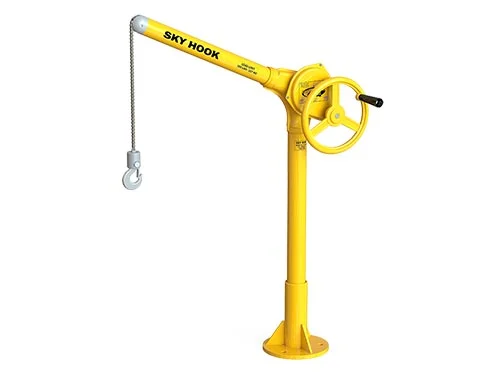

Premium Chain Sky Hook with Bench Mount Base
· #35 Steel Roller Chain
· Consistent Drive Rate
· Chain Stored Inside Vertical Tube
· Chain Travel: 75”
· Rate of Lift: 1”/ Hand wheel Revolution
· Hand Wheel Height: 29.2”
The Premium Bench Mount Sky Hook provides an easy, power-free way to lift and position heavy, awkward loads up to 500 lbs. Simply rotate the hand wheel for smooth, one-hand operation.
Its compact 8″ round base mounts to any flat surface - bench, cart, machine, or truck bed - and the removable design allows quick relocation or storage.
Featuring the LoadLock clutch brake, the Premium Sky Hook ensures secure, precise lifting without levers - just crank to raise, and reverse to lower safely and effortlessly.
Premium Bench Mount Sky Hook Features & Benefits:
· Prevents lifting injuries
· Uses one hand operation that does the work of four people
· Safely lifts and positions up to 500 lbs. with one person
· Designed for precision positioning
· Operates in tight working conditions
· Constructed of high strength steel
· Maintenance free
· Limited manufacturer’s warranty
· Meets applicable O.S.H.A. and ASME requirements
· Made in the U.S.A. since 1969
· CE marking available upon request

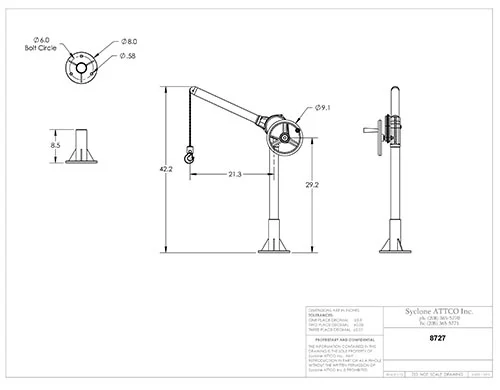

Premium Bench Mount Sky Hook Specifications:
· Load limit 500 lbs. / 227 kg.
· Brake style: LoadLock clutch brake
· Overall height (including base): 42.2”
· Overall reach (centre of hook to centre of vertical tube): 21.3”
· Sky Hook rotation in base: 360°
· Sky Hook weight: 26 lbs.
· Base weight: 13 lbs.
· Base plate size: 8” round
· Simple crank up to raise the load/crank down to lower the load operation
· Brake locks automatically
· Designed to mount to any suitable flat surface
· Easily detached and carried to different locations
· Custom modifications available
