Sky Hooks
Sky Hooks w/ Articulating Arm

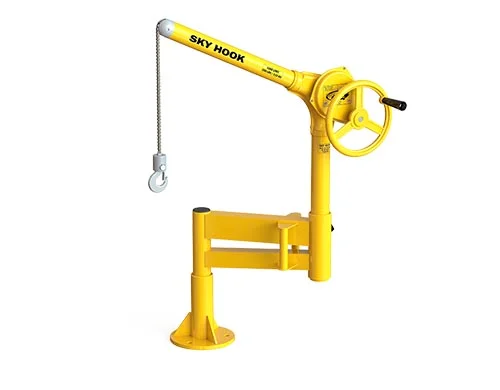

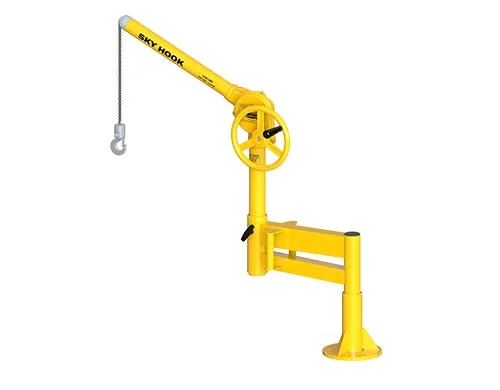

Premium Bench Mount Sky Hooks with Articulating Arm

Model #: A8727

Premium Chain Sky Hook with Bench Mount Base & Articulating Arm

  • Chain Sky Hook
  • #35 Steel Roller Chain
  • Consistent Drive Rate
  • Chain Stored Inside Vertical Tube
  • Chain Travel: 75”
  • Rate of Lift: 1”/ Hand wheel Revolution
  • Hand Wheel Height: 29.2”

The Articulating Arm Sky Hook expands the reach of thePremium Bench Mount model, offering a 36″ lifting radius with a 21.3″ Sky Hook reach and 14.7″ arm. Ideal for benches, carts, machine surfaces, or truck beds, it lifts up to 500 lbs with simple hand wheel operation.

Its compact 8″ round base mounts to any flat surface, and the removable design allows easy relocation or storage.

Featuring the LoadLock clutch brake, it provides secure, lever-free lifting and lowering - just crank the hand wheel for smooth, precise operation



Premium Bench Mount Sky Hooks w/ Articulating Arm Features & Benefits:

  • Designed to bolt easily to any suitable flat surface
  • Greatly increased range of motion with articulating arm
  • Prevents lifting injuries
  • Uses one hand operation that does the work of four people
  • Safely lifts and positions up to 500 lbs. with one person
  • Designed for precision positioning
  • Operates in tight working conditions
  • Designed to mount to any suitable flat surface
  • Easily detached and carried to different locations
  • Constructed of high strength steel
  • Maintenance free
  • Limited manufacturer’s warranty
  • Meets applicable O.S.H.A. and ASME requirements
  • Made in the U.S.A. since 1969
  • CE marking available upon request

Premium Bench Mount Sky Hooks w/ Articulating Arm Specifications:

  • Load limit 500 lbs. / 227 kg.
  • Brake style: LoadLock clutch brake
  • Overall height (including base): 42.2”
  • Overall reach (centre of hook to centre of base mast): 36”
  • Sky Hook reach: 21.3”
  • Articulating Arm reach: 14.7”
  • Sky Hook rotation in Articulating Arm: 360°
  • Articulating Arm rotation in base: 360°
  • Sky Hook weight: 26 lbs.
  • Articulation Arm weight: 19 lbs.
  • Base weight: 13 lbs.
  • Base plate size: 8” round
  • Simple crank up to raise the load/crank down to lower the load operation
  • Brake locks automatically
  • Custom modifications available
