Sky Hook
Fixed Mount Sky Hook Lifting Devices

Premium Floor Mount Sky Hooks

Model #: 8750

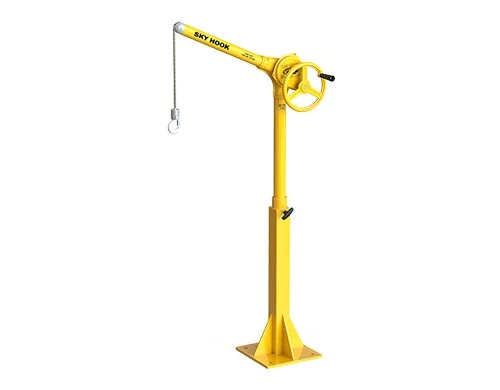

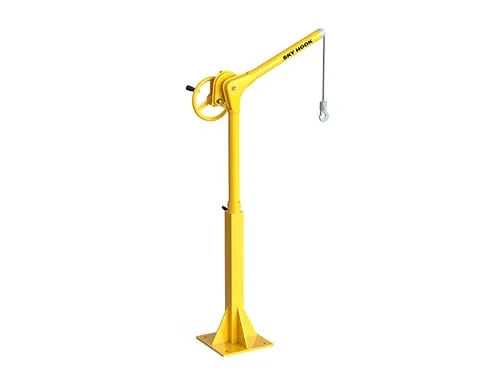

Premium Chain Sky Hook with Floor Mount Base

  • Chain Sky Hook
  • #35 Steel Roller Chain
  • Consistent Drive Rate
  • Chain Stored Inside Vertical Tube
  • Chain Travel: 75”
  • Rate of Lift: 1”/ Hand wheel Revolution
  • Hand Wheel Height: 51.3”

Loading heavy parts onto machines, benches, or carts is easy with the Premium Floor Mount Sky Hook. Ideal for welding, assembly, repair stations, docks, and marine environments, it provides safe, effortless lifting.

The 30.5″ tall unit mounts to floors via a 12″ square baseplate and is removable for relocation or storage.

 Featuring the LoadLock clutch brake, it allows secure lifting of up to 500 lbs. with smooth, lever-free operation—just crank the hand wheel to raise or lower loads safely.



Premium Floor Mount Sky Hooks Features & Benefits:

  • Designed to bolt easily to floor or any suitable flat surface
  • Prevents lifting injuries
  • Uses one hand operation that does the work of four people
  • Safely lifts and positions up to 500 lbs. with one person
  • Designed for precision positioning
  • Has removable boom for easy transportation
  • Easily detached and carried to different locations
  • Operates in tight working conditions
  • Constructed of high strength steel
  • Maintenance free
  • Limited manufacturer’s warranty
  • Meets applicable O.S.H.A. and ASME requirements
  • Made in the U.S.A. since 1969
  • CE marking available upon request

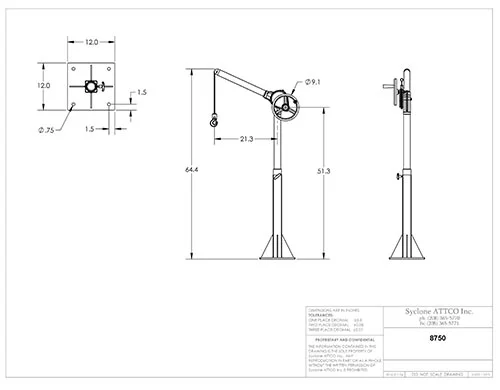

Premium Floor Mount Sky Hooks Specifications:

  • Load limit 500 lbs. / 227 kg.
  • Brake style: LoadLock clutch brake
  • Overall height (including base): 64.4”
  • Overall reach (centre of hook to centre of vertical tube): 21.3”
  • Sky Hook rotation in base: 360°
  • Sky Hook weight: 26 lbs.
  • Base weight: 42 lbs.
  • Base plate size: 12” square
  • Simple crank up to raise the load/crank down to lower the load operation
  • Brake locks automatically
  • Custom modifications available
