Premium Floor Mount Sky Hooks with Articulating Arm

Model #: A8750

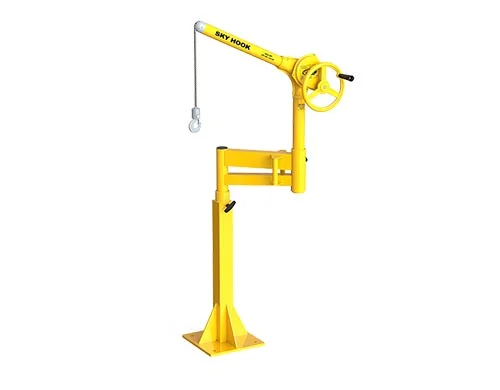

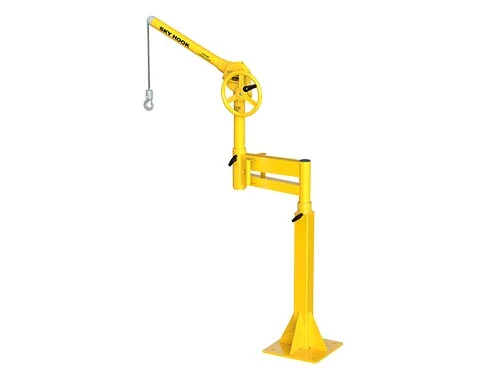

Premium Chain Sky Hook with Floor Mount Base & Articulating Arm

  • Chain Sky Hook
  • #35 Steel Roller Chain
  • Consistent Drive Rate
  • Chain Stored Inside Vertical Tube
  • Chain Travel: 75”
  • Rate of Lift: 1”/ Hand wheel Revolution
  • Hand Wheel Height: 51.3”

The Floor Mount Articulating Sky Hook offers a 36″ lifting radius with a 21.3″ Sky Hook reach and 14.7″ arm, ideal for welding, assembly, repair, docks, and marine use.

Its 30.5″ tall base with 12″ square plate mounts to any suitable floor, and the Sky Hook is removable for relocation or storage.

Featuring the LoadLock clutch brake, it provides safe, lever-free lifting of up to 500 lbs - just crank the hand wheel to raise or lower loads smoothly.



Premium Floor Mount Sky Hooks w/ Articulating Arm Features & Benefits:

  • Designed to bolt easily to floor or any suitable flat surface
  • Greatly increased range of motion with articulating arm
  • Prevents lifting injuries
  • Uses one hand operation that does the work of four people
  • Safely lifts and positions up to 500 lbs. with one person
  • Designed for precision positioning
  • Has removable boom for easy transportation
  • Operates in tight working conditions
  • Easily detached and carried to different locations
  • Constructed of high strength steel
  • Is totally maintenance free
  • Has a limited manufacturer’s warranty
  • Meets applicable O.S.H.A. and ASME requirements
  • Made in the U.S.A. since 1969
  • CE marking available upon request

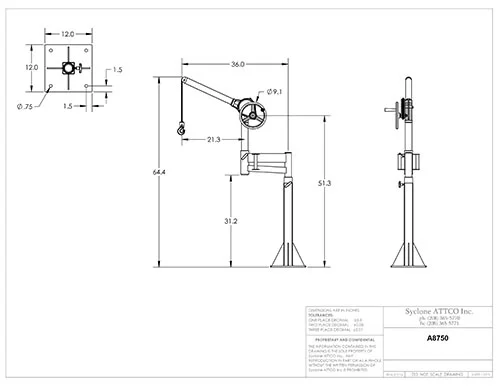

Premium Floor Mount Sky Hooks w/ Articulating Arm Specifications:

  • Load limit: 500 lbs. / 227 kg.
  • Brake style: LoadLock clutch brake
  • Overall height (including base): 64.4”
  • Overall reach (centre of hook to centre of base mast): 36”
  • Sky Hook reach: 21.3”
  • Articulating Arm reach: 14.7”
  • Sky Hook rotation in Articulating Arm: 360°
  • Articulating Arm rotation in base: 360°
  • Sky Hook weight: 26 lbs.
  • Articulation Arm weight: 19 lbs.
  • Base weight: 42 lbs.
  • Base plate size: 12” square
  • Simple crank up to raise the load/crank down to lower the load operation
  • Brake locks automatically
  • Custom modifications available
