Premium Mobile Cart Sky Hooks: Portable Lifting Cranes

Model #: 8770

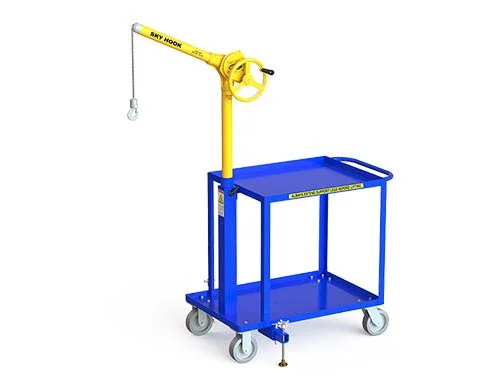

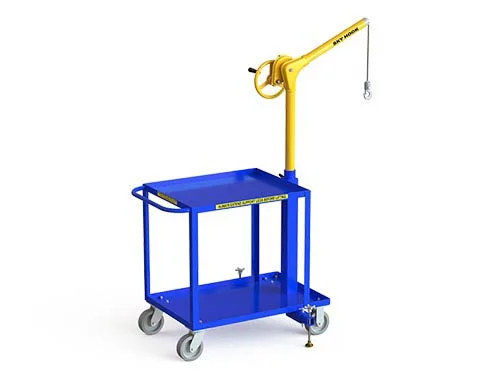

Premium Chain Sky Hook with Mobile Cart Base

• Chain Sky Hook
• #35 Steel Roller Chain
• Consistent Drive Rate
• Chain Stored Inside Vertical Tube
• Chain Travel: 75”
• Rate of Lift: 1”/ Hand wheel Revolution
• Hand Wheel Height: 58.5”

The Premium Sky Hook with Mobile Cart Base is our most popular portable hoist, valued for its versatility, full 360° rotation, and ability to reach into machines or over benches - especially where standard lift legs can’t fit, such as around CNC equipment.

The cart matches common utility cart dimensions for easy manoeuvring.Its 6" × 2" casters and steel construction provide a stable platform for transporting heavy loads. Built-in support legs extend for lifting and retract for transport, allowing the unit to roll through standard 3' doorways.

Featuring the LoadLock clutch brake, it offers smooth, lever-free lifting up to 500 lbs - simply crank the hand wheel to raise or lower safely.

These mobile cranes require counterweight equal to 125% of the load (up to 630 lbs). Customers may use their own weights or purchase SkyHook counterweight kits as needed.

Sky Hook Premium Mobile Cart Portable Jib Crane Features & Benefits:

• Reaches easily into machine without legs beneath load
• Prevents lifting injuries
• Uses one hand operation that does the work of four people
• Safely lifts and positions up to 500 lbs. with one person
• Designed for precision positioning
• Lifts, transports, and stores machine accessories, material, or heavy awkward items.
• Designed to fit a 3-foot standard aisle and tight, hard to reach areas
• Use on CNC equipment and all other general lifting requirements
• 6" x 2” Transforma casters allow for smooth, precise movement
• Heavy duty 12ga. steel top shelf with angle posts for maximum strength
• Constructed of high strength steel
• Maintenance free
• Limited manufacturer’s warranty
• Meets applicable O.S.H.A. & ASME requirements
• Made in the U.S.A. since 1969
• CE marking available upon request

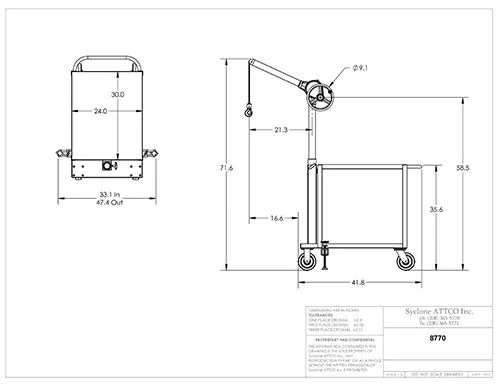

Sky Hook Premium Mobile Lifting Equipment Specifications:

• Load limit 500 lbs. / 227 kg.
• Brake style: LoadLock clutch brake
• Overall height (including base): 71.6”
• Overall reach (centre of hook to centre of vertical tube): 21.3”
• Sky Hook rotation in base: 360° (under load with support legs extended)
• Sky Hook weight: 26 lbs.
• Base weight: 128 lbs.
• 6" x 2” Transforma non-marking rubber casters (2-swivel w/ brakes, 2-rigid)
• 33.1" overall cart width with support legs retracted
• Simple crank up to raise the load/crank down to lower the load operation
• Brake locks automatically
• Custom modifications available
• Counterweight Required!
