Premium Mobile Cart Sky Hooks w/ Articulating Arm

Model #: A8770

Premium Chain Sky Hook with Mobile Cart Base & Articulating Arm

• Chain Sky Hook
• #35 Steel Roller Chain
• Consistent Drive Rate
• Chain Stored Inside Vertical Tube
• Chain Travel: 75”
• Rate of Lift: 1”/ Hand wheel Revolution
• Hand Wheel Height: 58.5”

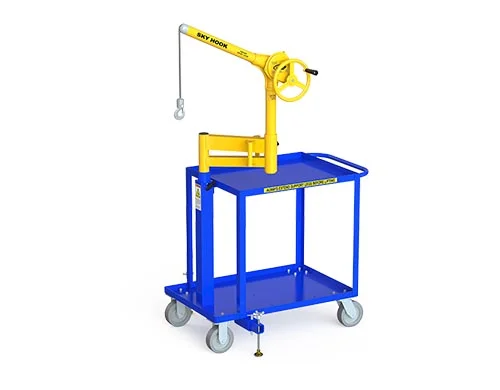

The Sky Hook with Mobile Cart Base and Articulating Arm is a versatile lifting solution with 360° rotation and a 36″ reach, ideal for picking loads inside machines or over benches.

 The mobile cart matches standard utility dimensions for easy manoeuvring, with 6″ × 2″ casters and steel construction for stability.Built-in support legs extend for lifting and retract for transport, allowing the unit to roll through standard 3′ doorways.

 Featuring the LoadLock clutch brake, it lifts up to 500 lbs smoothly and safely without levers.

These units require counterweights equal to 250% of the load(up to 625 lbs). Customers can use their own weights or purchase Sky Hook counterweight kits.

‍

Premium Mobile Cart Sky Hooks w/ Articulating Arm Features & Benefits:

• Prevents lifting injuries
• Reaches easily into machine without legs under load
• Greatly increased range of motion with articulating arm
• One hand operation
• Safely lifts and positions up to 250 lbs. with one person
• Designed for precision positioning
• Lifts, transports, and stores machine accessories, material, or heavy awkward items.
• Designed to fit a 3-foot standard aisle and tight, hard to reach areas
• Use on CNC equipment and all other general lifting requirements
• 6" x 2” Transform a casters allow for smooth, precise movement
• Heavy duty 12ga. steel top shelf with angle posts for maximum strength
• Constructed of high strength steel
• Maintenance free
• Limited manufacturer’s warranty
• Meets applicable O.S.H.A. & ASME requirements
• Made in the U.S.A. since 1969
• CE marking available upon request

Premium Mobile Cart Sky Hooks w/ Articulating Arm Specifications:

• Load limit: 250 lbs. / 113 kg.
• Brake style: LoadLock clutch brake
• Overall height (including base): 71.6”
• Overall reach (centre of hook to centre of base mast): 36”
• Sky Hook reach: 21.3”
• Articulating Arm reach: 14.7”
• Sky Hook rotation in Articulating Arm: 360°(under load with support legs extended)
• Articulating Arm rotation in base: 360° (under load with support legs extended)
• Sky Hook weight: 26 lbs.
• Articulation Arm weight: 19 lbs.
• Base weight: 128 lbs.
• 6" x 2” Transforma non-marking rubber casters (2-swivel w/ brakes, 2-rigid)
• 33.1" Overall cart width with support legs retracted
• Simple crank up to raise the load/crank down to lower the load operation
• Brake locks automatically
• Custom modifications available
• Counterweight Required!
