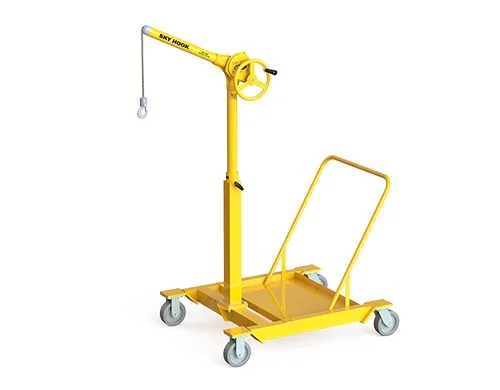

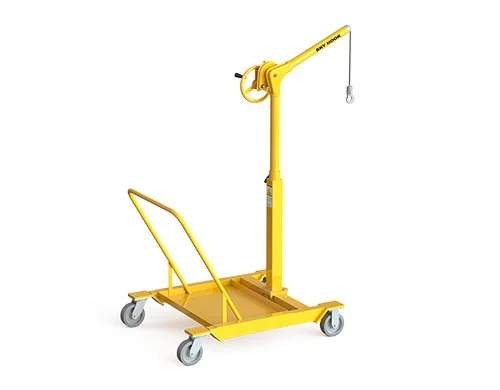

Premium Reverse Cherry Picker Sky Hooks

Model #: 8765

Premium Chain Sky Hook with Mobile Reverse Cherry Picker Base

• Chain Sky Hook
• #35 Steel Roller Chain
• Consistent Drive Rate
• Chain Stored Inside Vertical Tube
• Chain Travel: 75”
• Rate of Lift: 1”/ Hand wheel Revolution
• Hand Wheel Height: 59.6”

Compact and manoeuvrable, the Premium Reverse Cherry PickerSky Hook provides easy access into machinery to lift or reposition heavy, awkward items—perfect for CNC machines and areas where standard cherry picker legs can’t fit. The low-profile counterweight tray and ergonomic handle make rigging and transport simple.

These units require counterweight equal to 125% of the load(up to 630 lbs for max capacity). Customers can use their own weights or purchase Sky Hook counterweights separately. With a 34" base width, the unit fits through standard 3' doorways with the load suspended.

Featuring the LoadLock clutch brake, it delivers smooth, lever-free lifting up to 500 lbs—just crank the hand wheel to raise or lower safely and precisely.

Premium Reverse Cherry Picker Sky Hooks Features & Benefits:

• Designed to reach into any area without legs under load
• Fits through a standard 3-foot aisle and manoeuvre into tight hard-to-reach areas
• Prevents lifting injuries
• Uses one hand operation that does the work of four people
• Safely lifts and positions up to 500 lbs. with one person
• Designed for precision positioning
• Has removable boom and base can be disassembled for easy transportation and storage
• 6" x 2” Transforma casters allow for smooth, precise movement
• Fits through standard 3'0 door
• Includes built in steel counterweight tray(counterweight sold separately)
• Constructed of high strength steel
• Maintenance free
• Limited manufacturer’s warranty
• Meets applicable O.S.H.A. & ASME requirements
• Made in the U.S.A. since 1969
• CE marking available upon request

Premium Reverse Cherry Picker Sky Hooks Specifications:

• Load limit 500 lbs. / 227 kg.
• Brake style: LoadLock clutch brake
• Overall height (including base): 72.7”
• Overall reach (centre of hook to centre of vertical tube): 21.3”
• Clearance reach (centre of hook to front of base): 10.9”
• Sky Hook rotation in base: 30° (15° ea. way)
•  ky Hook weight: 26 lbs.
• Base weight: 107 lbs.
• 6" x 2” Transforma non-marking rubber casters (2-swivel w/ brakes, 2-rigid)
• Simple crank up to raise the load/crank down to lower the load operation
• Brake locks automatically
• Custom modifications available
• Counterweight Required!
